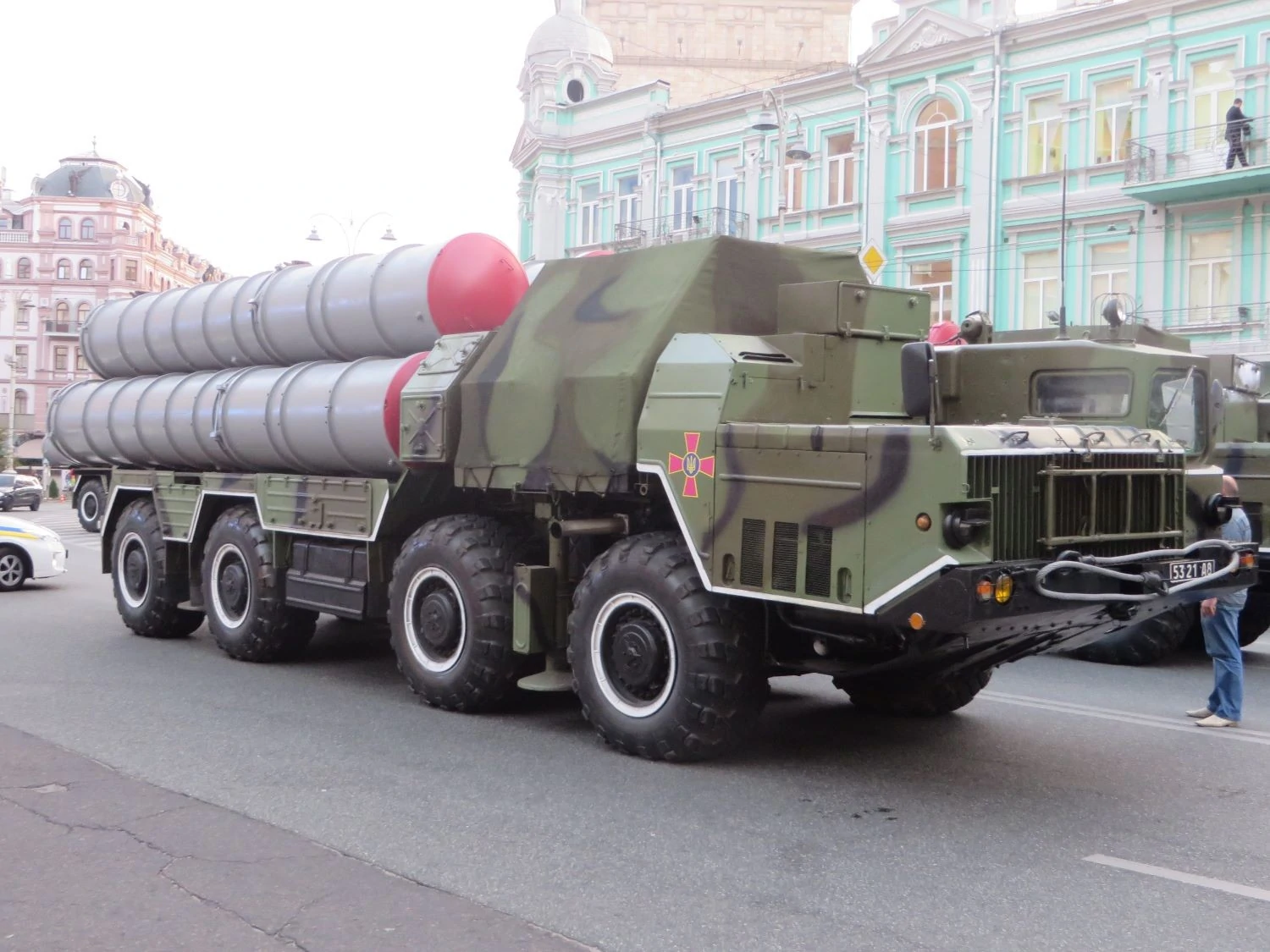

Simulator for training crews of the F2K hardware container of the S-300P surface-to-air missile system

About the Simulator

The simulator for training the crews of the F2K hardware container of the S-300P surface-to-air missile system is designed to provide preparation (training) for the crews of the F2K hardware container of the S-300P surface-to-air missile system. Presented as a set of training interactive mock-ups of S-300 operator workstations. It can be used independently as a training model for studying the control units and display devices of the S-300, as well as in conjunction with specialized software for simulating the operation of the S-300.

Simulator Package Includes:

  • Interactive Training Mock-up of the Launch Officer’s Workstation
  • Interactive Training Mock-up of the Detection and Targeting Officer’s Workstation
  • Interactive Training Mock-up of the Target Acquisition Officer’s Workstation
  • Interactive Training Mock-up of the Radar Station Operator’s Workstation (Elevation Channel)
  • Interactive Training Mock-up of the Radar Station Operator’s Workstation (Azimuth Channel)
  • Instructor Workstation
  • Specialized Software Suite
Specialized Software
Simulation Module for Automated Crew Workstations of the S-300 Provides:
  • Software Package Includes:

  • Module for Simulation of Automated Crew Workstations of the S-300
  • Mathematical Model for S-300 System Operation Simulation
  • Performance Monitoring and Evaluation Module
Performance Monitoring and Evaluation Module in Test Mode is Designed for:
  • Monitoring Crew Actions Across All Automated Workstations (AWS)
  • Detection of Errors During Crew Execution of Combat Operations
  • Evaluation of Crew Performance Based on Error Count, Task Execution Time, and Mission Outcomes
  • Real-Time Generation of an Audio-Visual 3D Environment for the S-300 Crew (Including All System Elements) with an Average Frame Rate of Not Less Than 30 FPS for the Launch Officer Workstation, Detection and Targeting Officer Workstation, Target Acquisition Officer Workstation, and Radar Station Operator Workstations (Elevation and Azimuth Channels)
  • Interaction Between Crew Members and S-300 Control Elements During Operation via the Following Input Devices:
  • Keyboards and Mice or Touchscreen-Enabled Displays (Touch Screen Technology) — for Standalone Operation Outside the Multimedia Training Complex
  • Control Interfaces of Interactive Training Workstation Mock-ups Integrated within the Multimedia Training Complex
  • Transmission of User-Entered Commands to the S-300 Operational Simulation Mathematical Model and Visualization of Resulting Signals on Display Systems
